Roofs > Cor Span

You’ve heard it many times before. Your home is the single largest investment most people make.

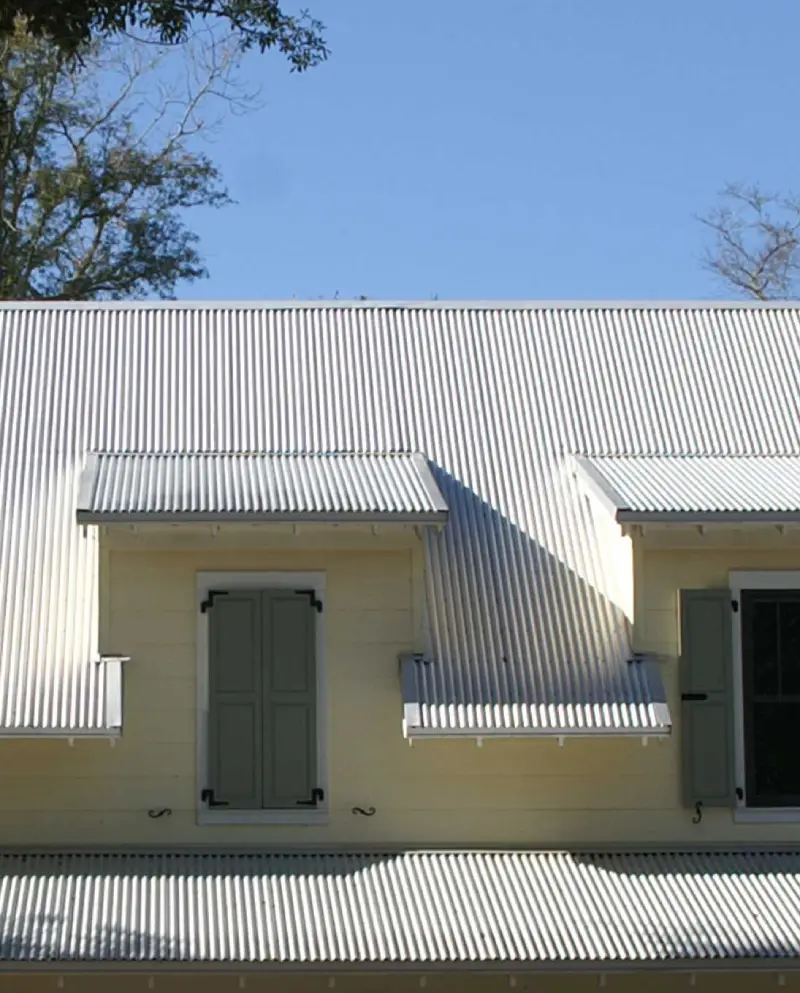

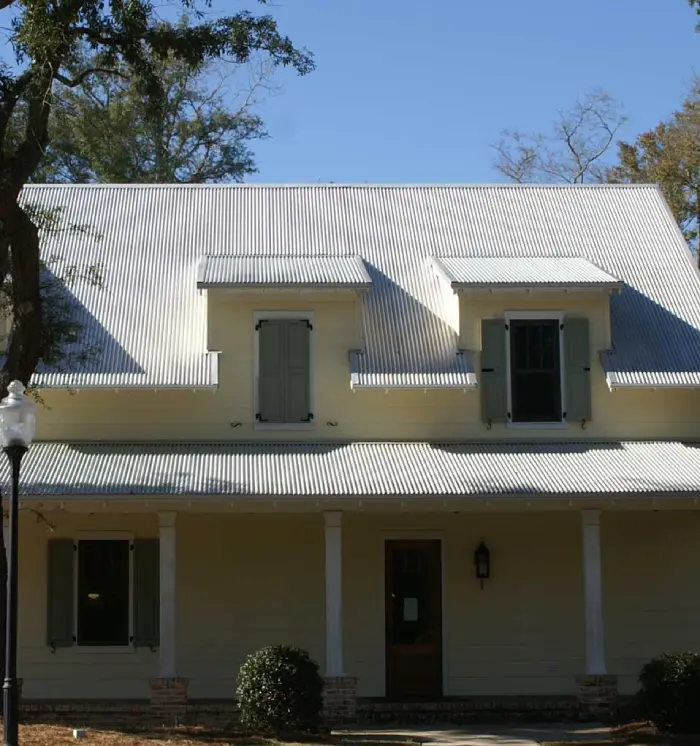

And a metal roof such as Cor Span can make the most of your investment. Cor Span is extremely versatile, and the depth of the corrugations (7/8″) allows for greater load requirements and increased sturdiness. With little to no upkeep, as well as resistance to fire, mildew, insects and rot, a steel roof can enhance your home’s market value. Especially when properly installed by trained professionals who take pride in their work. Our dedication to quality craftsmanship is your guarantee that your smart investment will pay dividend far into the future.

Available Colors

Galvalume and Ceram-A-Star 1050 Stock Color, Kynar is available through special order.

  • Ash Gray

  • Barn Red

  • Burnished Slate

  • Charcoal Gray

  • Clay

  • Cocoa Brown

  • Forest Green

  • Galvalume

  • Hawaiian Blue

  • Light Stone

  • Mocha Tan

  • Polar White

Product Features & Specs

  • Slope – 1:12 (Minimum Recommended Slope)
  • Substrate – Open structure framing and solid substrates. It is recommended to be installed over 5/8” plywood decking with a 30 pound felt moisture barrier.
  • Coverage – 32” Coverage Panel, 7/8” Rib Height
  • Length – MIN. 40”, MAX 40’ (Longer lengths are available with prior coordination)
  • Availability – 26 and 24 Gauge
  • Performance Test – UL 580-94 / UL 1897-98 in accordance with Florida Building Code 2004.
  • Fastening System – Exposed Fastener # 10 – 12 x 6 x 2” HWH
  • Materials – Steel Grade 80/D per ASTM A-792
  • Color Options – Galvalume and Ceram-A-Star 1050 Stock Color – Kynar (available through special order)
MRC Cor Span Schematic
